1/2” cable suitable

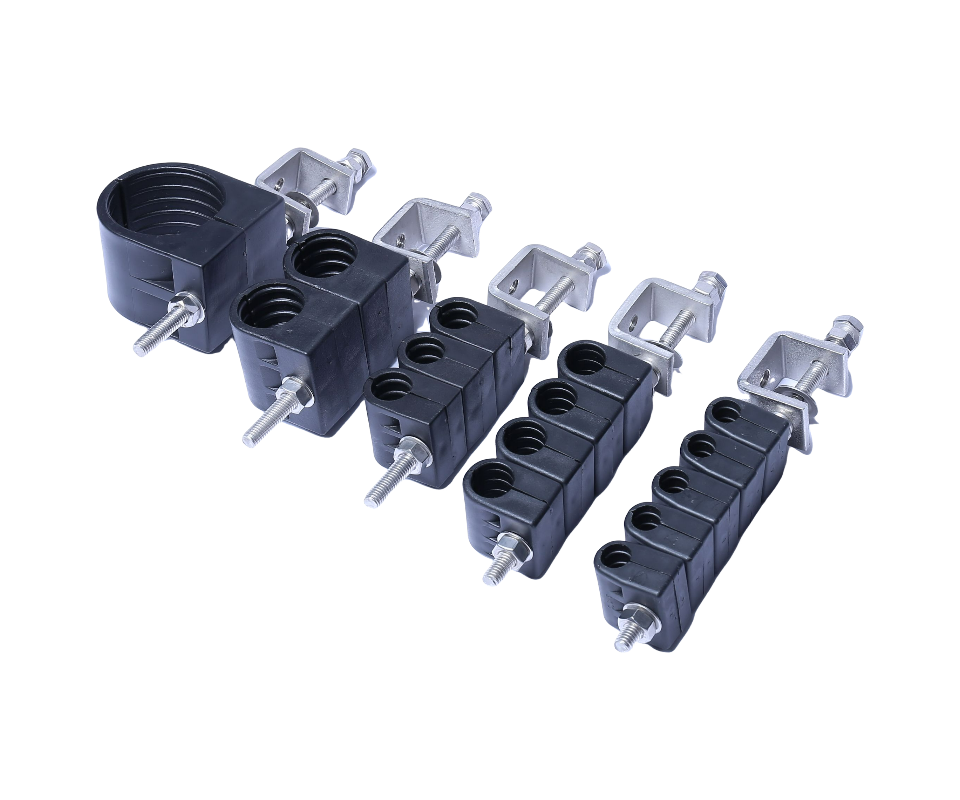

1way to 4ways configuration available
Easy to be installed on the tower or cable tray
Advantages of good impact resistance
Strong chemical corrosion resistance and good UV resistance
Clamps are used wildly in the cable system, such as coaxial cable, power cable and CPRI cable.
It is always use stainless steel for mounting support, PP/nyplon clamp for cable protection, provide steable and reliability support to the cables system.

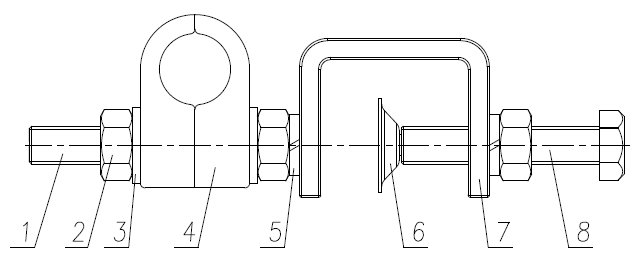

| Item | Piece Part | Material | Draft Drawing |
| 1 | Thread rod M8 | Stainless steel 304 | ![]() |
| 2 | Nut M8 | Stainless steel 304 | |
| 3 | Flat washer | Stainless steel 304 | |
| 4 | Plastic cable clamp | Polypropylene | |
| 5 | Spring washer | Stainless steel 304 | |
| 6 | Bowl washer | Stainless steel 304 | |
| 7 | C-Frame | Stainless steel 304 | |
| 8 | Bolt M8 | Stainless steel 304 |
| Working Temperature | -40 to +70 ℃ |
| UV Resistance | ASTM G154-06 Gycle1 |
| RoHS | Compliant |
| Suitable for cable | 1/2" feeder cable |
| Qty. of cable | 1 way |

Clamp for 7/8" feeder cable, 2 ways

Clamp for 1 5/8" feeder cable, 4 ways

Clamp for 7/8" feeder cable, 2 ways

Clamp for 1/2" feeder cable, 4 ways
