Low insertion loss
High return loss
Good repeatability
RoHS compliance

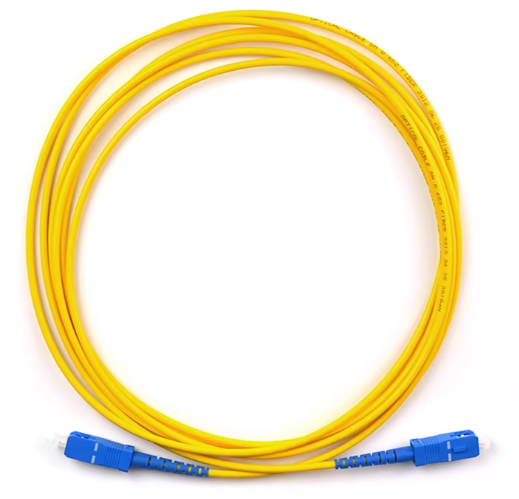

Boasting a high-purity fiber core, it delivers low insertion/return loss and stable Gigabit signal transmission, ideal for indoor optical interconnection in data centers, server rooms and offices. Equipped with a flame-retardant, eco-friendly outer sheath, it suits complex indoor environments—flexible, wear-resistant and easy to route. Precision connectors enable plug-and-play use, ensuring efficient device-to-device optical links for reliable indoor optical network setup.
| Fiber Type |
G657A2 |
||
| Fiber Core/Cladding Dia. | 9/125 um | ||
| Fiber Count | 1 Core | ||
| Material | PVC | ||
| Color | Yellow | ||
| Cable Diameter | 2.0 mm | ||
| Connector Type | SC/UPC-SC/UPC | ||
| Attenuation | @1310nm | ≤0.4 dB/km | |
| @1550nm | ≤0.3 dB/km | ||
| Insert Loss | 0.3 dB | ||
| Return Loss | ≥50 dB | ||
| Minimum Bending Radius | Dynamic | 20xOD mm | ||
| Static | 10xOD mm | |||
| Tensile Strength | Long Term | 80 mm | ||
| Short Term | 150 mm | |||
| Crush | Long Term | 100 N/100mm | ||
| Short Term | 500 N/100mm | |||
| Temperature Range Operation | -25 to +75 ℃ | ||
| Temperature Range Installation | -25 to +70 ℃ | ||
| 2011/65/EU (RoHS) | Compliant |
