Antenna frequency: 4 x (617-894) + 4 x (1695-2690) MHz
3dB azimuth beamwidth: 45 °
Gain: 17.3/21.2 dBi
Electrical downtilt: 0-10/0-10 °
Connector: 8 x 4.3-10 female
Dimension: 2437 x 630 x 220 mm
Status of product: general available
Panel Antenna
Integrated RET (AISG 2.0 Compliant), field exchangeable
| Frequency | 2 x (617-894) + 2 x (1695-2690) MHz |
| Gain | 17.3/21.2 dBi |

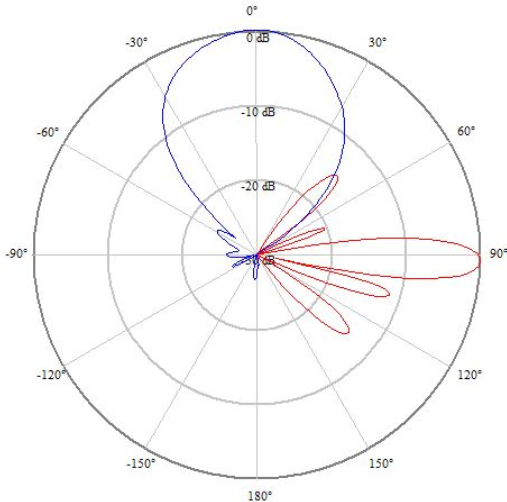

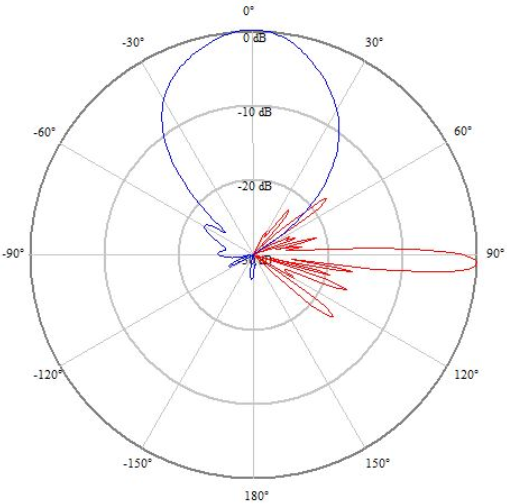

| 3dB Azimuth Beamwidth | 45 ° |
| Electrical Downtilt | 0-10 ° |
| 1st Upper Sidelobe Suppression | > 15/> 19 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 25 |
| Inter - Cluster Isolation | R1,R2//Y1,Y2 >30; R1//R2 >20; Y1//Y2 >30 |
| 3rd PIM(2 x 43 dBm) | < -153 dBc |
| Impedance | 50 Ω |

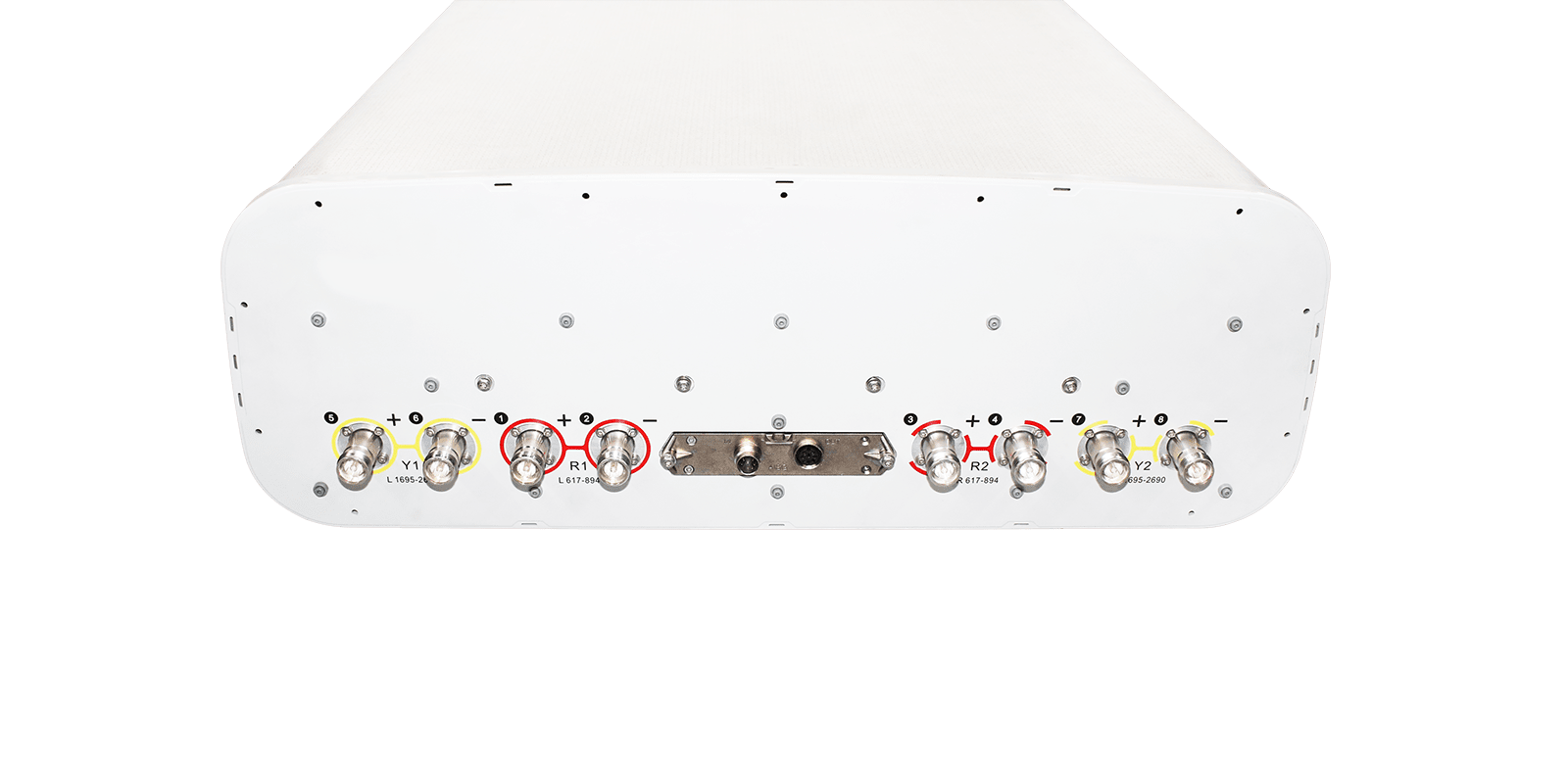

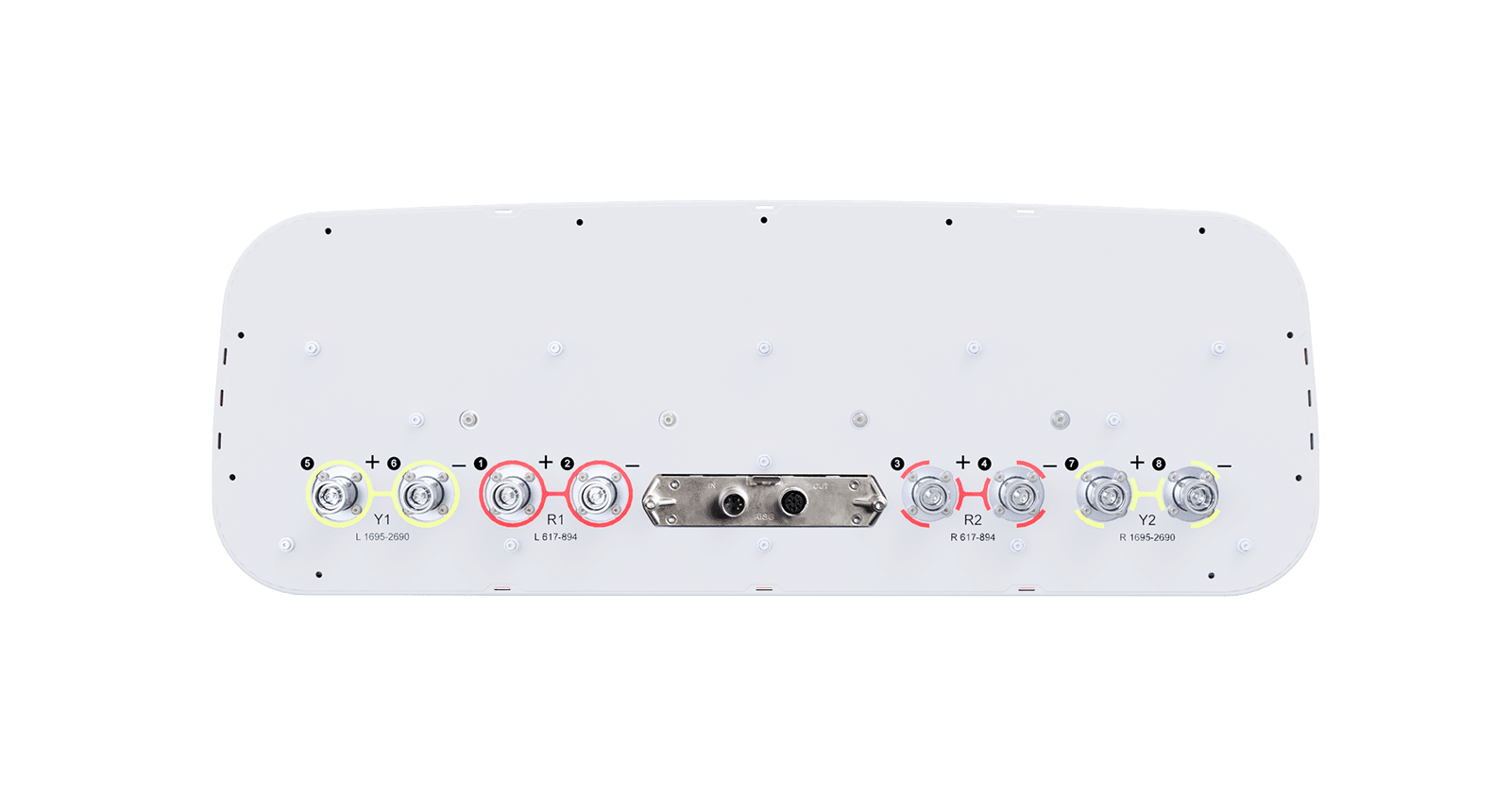

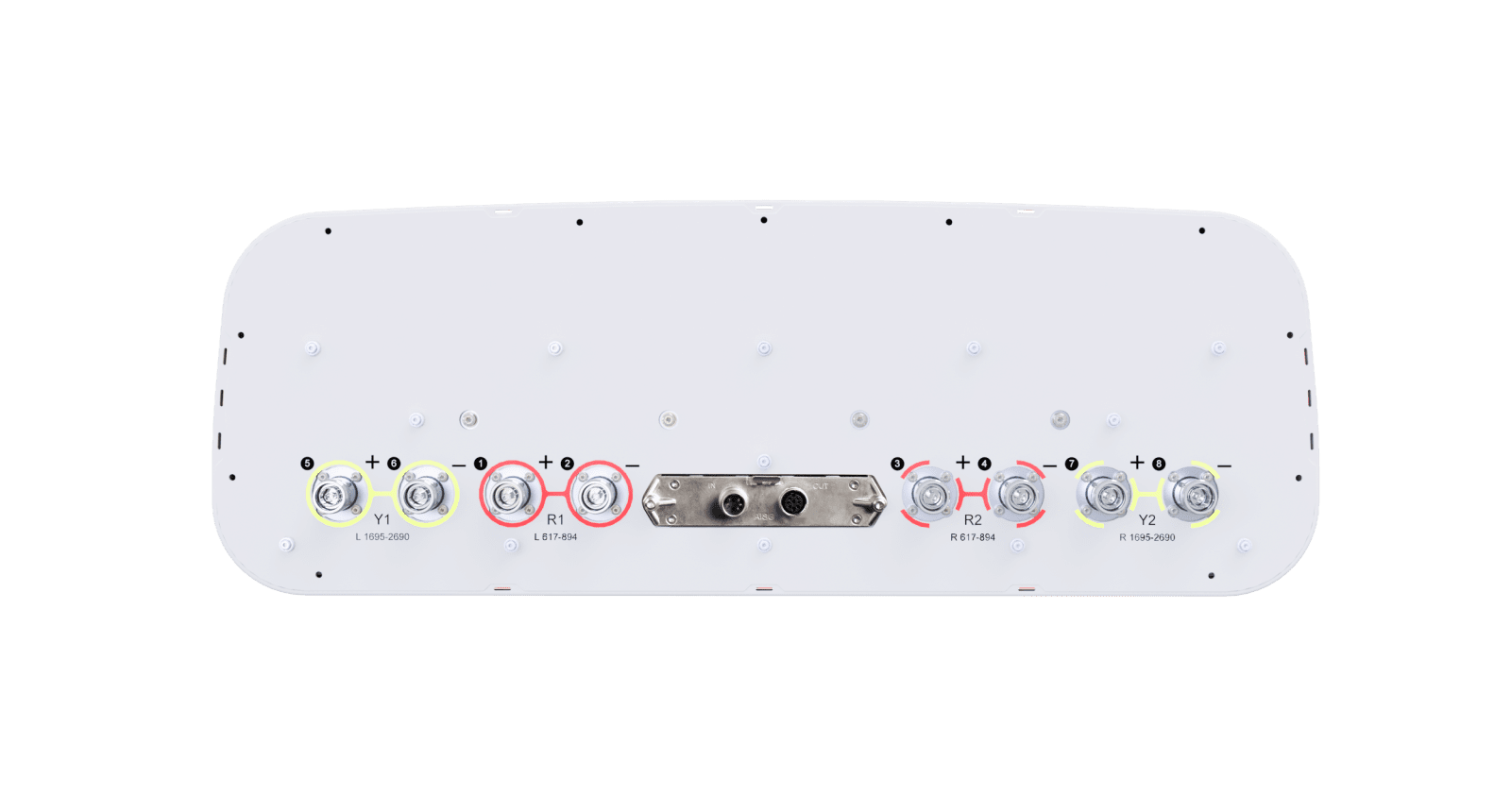

| Connector Type | 8 x 4.3-10 female |
| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | Fiberglass |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 2437 x 630 x 220 mm | 95.9 x 24.8 x 8.7 in |
| Packing Size (H x W x D) | 2590 x 760 x 365 mm | 102.0 x 29.9 x 14.4 in |
| Survival Wind Speed | 241 km/h | 150 mph |
| Wind Load @150 km/h (Max) | 1446 N | 325 lbf |
| Mast Diameter Supported | 50 - 110 mm | 2.0 – 4.3 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 to +70 °C | -40 to +158 °F |
| Compatible Standards | AISG2.0/ 3GPP |
| Power Consumption | ≤2(stand by); ≤13(operating) |
| Configuration Management | Integrated RET, pre-configured |
| Software Upgradability | True |
| Replaceability in Field | True |
| 617-894 | 1695-2690 |
![]() |
![]() |

| Item | Model | Weight | Mechanical tilt range (°) |
| Mounting Kit | RAPMK-01 | 3.8 kg / 8.4 lb | 0-10 |
