Antenna frequency: 4×(698-960) + 4×(1695-2690) MHz
3dB azimuth beamwidth: 33/33 °
Gain: 16.6/18.8 dBi
Electrical downtilt: 2-12/2-12 °
Connector: 16 x 4.3-10 female
Dimension: 2436 x 630 x 220 mm
Status of product: general available
Dual Twin Beam Antenna
Integrated RET (AISG 2.0 Compliant), field exchangeable
| Frequency | 4×(698-960) + 4×(1695-2690) MHz |
| Gain | 16.6/18.8 dBi |
| 3dB Azimuth Beamwidth | 33/33 ° |
| Electrical Downtilt | 2-12/2-12 ° |
| 1st Upper Sidelobe Suppression | > 18/> 16 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 25 /> 25 |
| Inter - Cluster Isolation | > 25 /> 25 |
| 3rd PIM(2 x 43 dBm) | < -153 dBc |
| Impedance | 50 Ω |
| Connector Type | 16 x 4.3-10 female |

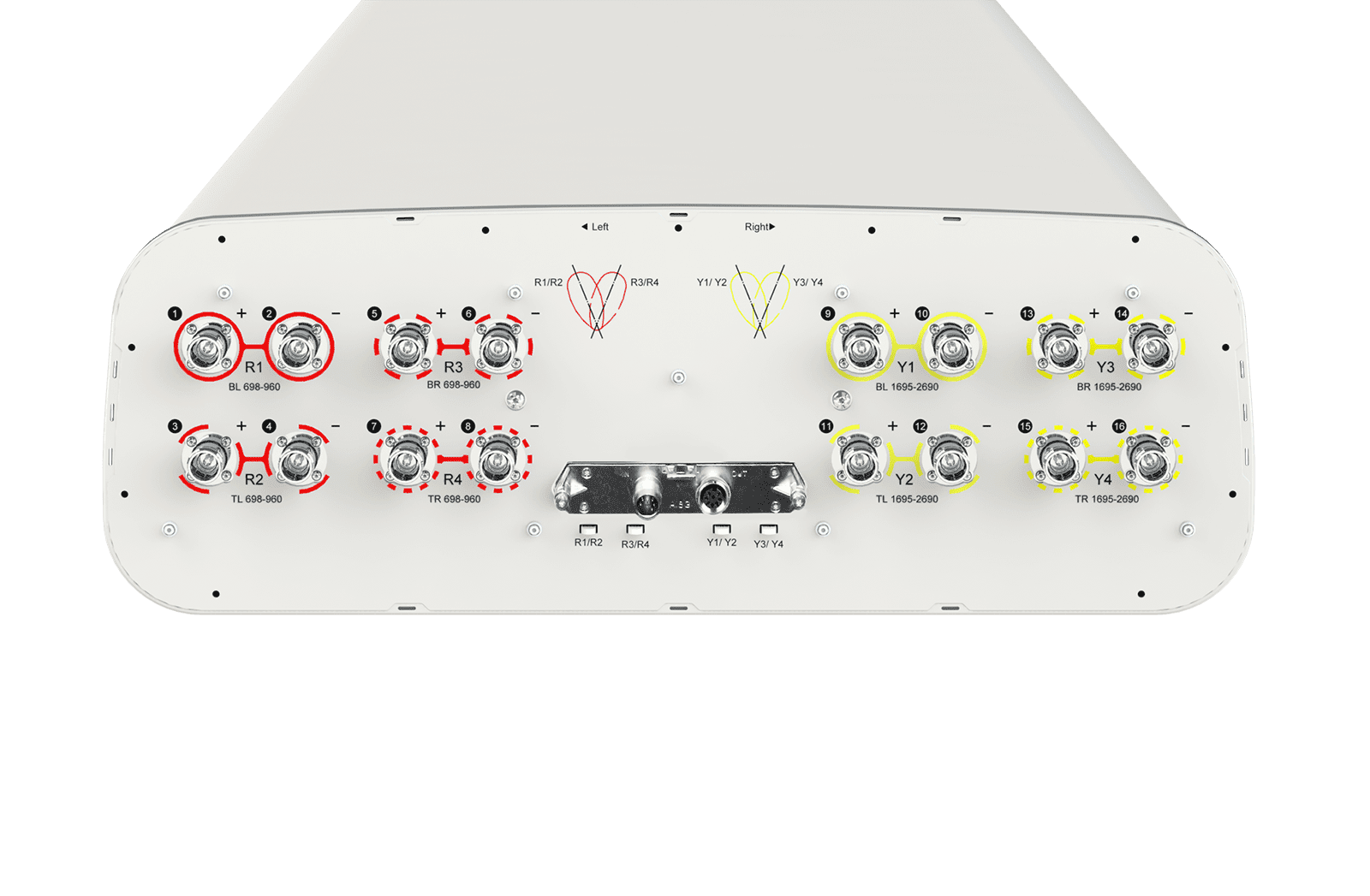

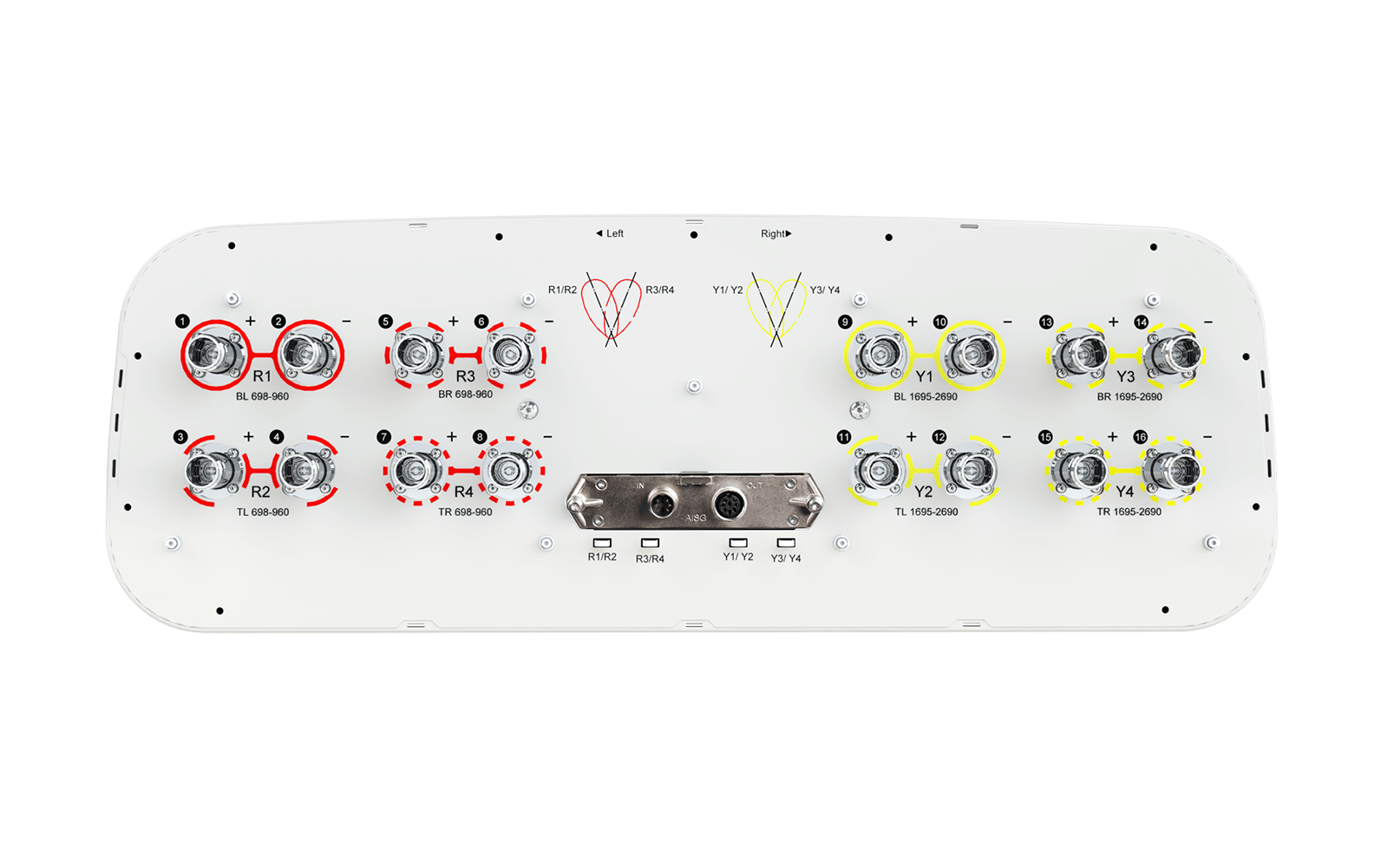

| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | Fiberglass |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 2436 x 630 x 220 mm | 95.9x 24.8 x 8.7 in |
| Packing Size (H x W x D) | 2590 x 760 x 365 mm | 102 x 29.9 x 14.4 in |
| Survival Wind Speed | 200 km/h | 124 mph |
| Wind Load @150 km/h (Max) | 1445 N | 325 lbf |
| Mast Diameter Supported | 70 - 114 mm | 2.8 – 4.5 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 ~ +70 °C | -40 ~ +158 °F |
| Compatible Standards | AISG2.0/ 3GPP |
| Power Consumption | ≤2(stand by); ≤13(operating) |
| Configuration Management | Integrated RET, pre-configured |
| Software Upgradability | True |
| Replaceability in Field | True |
| 698-960 | 1695-2690 |
![]() |
![]() |

| Item | Model | Weight | Mechanical Tilt Range (°) |
| Mounting Kit | RAPMK-01 | 3.8 kg/8.4 Ib | 0-10 |
