Support 2x2 MIMO for band1/3/7/8/28/40, and 4x4 MIMO for n78
PBMU has 32 inputs, 4 ports per set, each set support one frequency band, independent ATT per each port
Band 40 supports 4G/5G technology optional
Automatically balance the input power from difference operator’s RRU and combine the same band signal in single output
Power detection for each operator and technology
Support up to 16/8(4G/5G) NEU from one single PBMU
Management via OMT or NMS management software

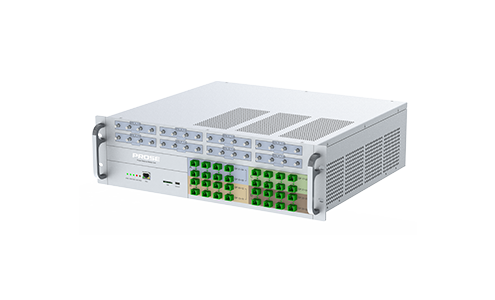

700/900/1800/2100/2300/2600/3500MHz, 32 in 32 out, 5G 4T4R, cabinet mounted
| Uplink | Downlink | ||
| Frequency Range | Band 1 (2x2 MIMO) | 1920 - 1980 MHz | 2110 - 2170 MHz |
| Band 3 (2x2 MIMO) | 1710 - 1785 MHz | 1805 - 1880 MHz | |
| Band 7 (2x2 MIMO) | 2500 - 2570 MHz | 2620 - 2690 MHz | |
| Band 8 (2x2 MIMO) | 880 - 915 MHz | 925 - 960 MHz | |
| Band 28 (2x2 MIMO) | 703 - 748 MHz | 758 - 803 MHz | |
| Band 40/n40 (2x2 MIMO) | 2300 - 2400 MHz | 2300 - 2400 MHz | |
| n78 (4x4 MIMO) | 3300 - 3800 MHz | 3300 - 3800 MHz | |
| Gain | -20 ± 2 dB | -20 ± 2 dB | |
| RF Output Power | -30 ± 2 dBm (RF) | --- | |
| Operating Temperature Range | -10°C to +45°C |
| Storage Temperature Range | -40°C to +85°C |
|
Relative Humidity |
10% - 95% |
|
Ingress Protection |
IP40 for indooor |
| Monitoring and Control | LAN-RJ45 (local) |
| 3G&4G wireless modem/Ethernet (remote) | |
| Cooling | Nature cooling |
| Optical Connectors | n78 4x4 MIMO | 8 sets x SC/APC @ A/B/C/D required 4pcs fibers per set |
| n78 2x2 MIMO | 8 sets x SC/APC @ A/B required 2pcs fibers per set | |
| Band 1/3/7/8/20/40 2x2 MIMO | 16 sets x SC/APC @A/B or C/D required 2pcs fibers per set | |
| RF Connectors |
IM2U: 16 x QMA-Female PBU: 32 x QMA-Female |
|
| Mounting | 19' Rack Mounting | |
